Milesight CT101

€ 77,00

Incl. BTW, excl. verzendkosten

Fast and reliable delivery

Follow your package with track & trace

SSL secured webshop

Not happy, money back

We do not deliver to private individuals. We only do business with organizations that are registered with the Chamber of Commerce.

Description

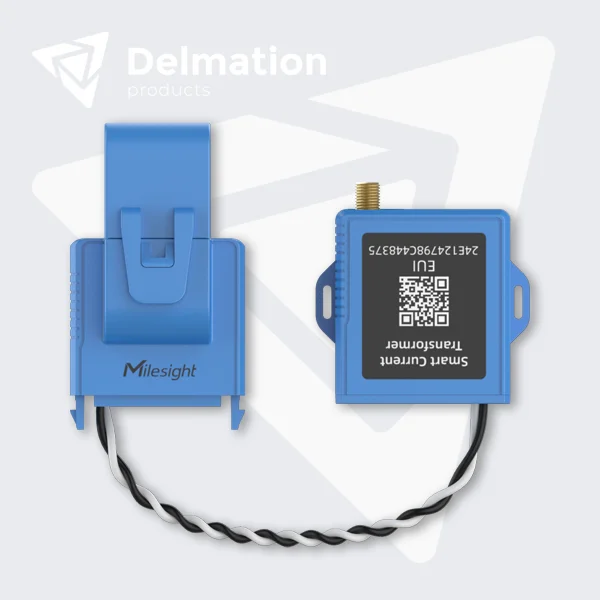

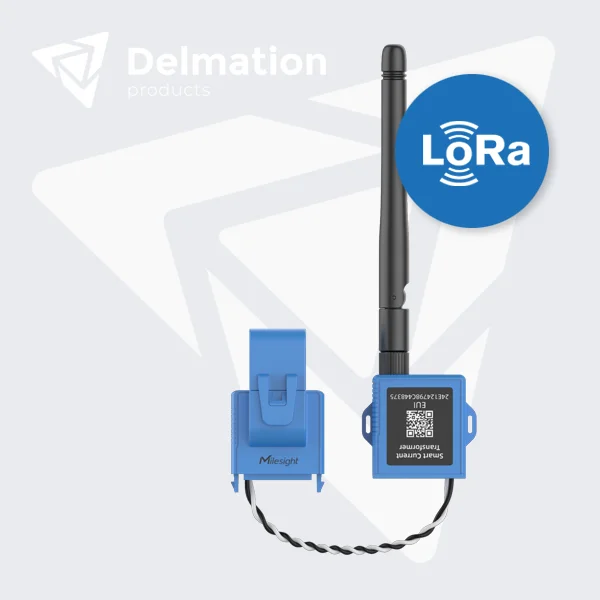

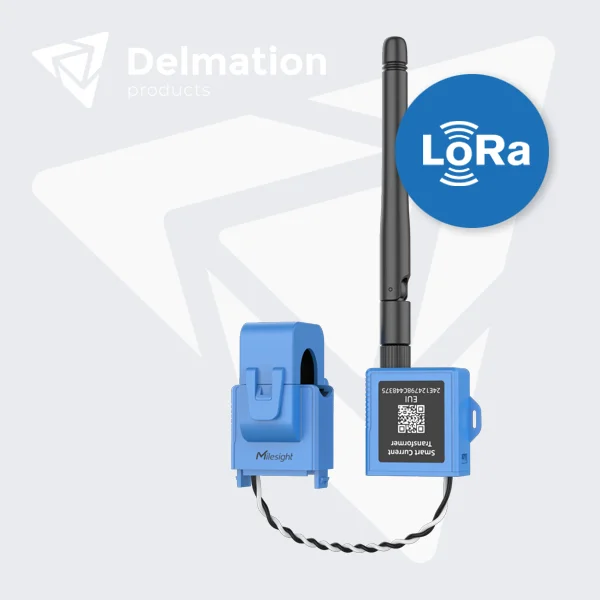

The CT101 from Milesight is a wireless LoRaWAN energy meter, fitted with a current clamp, to monitor energy consumption in residential as well as commercial applications, for example.

The energy meter uses a current clamp, which makes it possible to easily measure without modifications to existing cabling.

The energy meter powers itself by means of a supercapacitor, so no batteries are required.

The CT101 has a maximum measuring range of 100A and takes a measurement every second. Because the sensor has a sample time of 1 second, it is possible to determine energy consumption.

Configuration of the meter is possible via a LoRa downlink or by means of USB-C and the ToolBox app. This way you can set threshold values and alerts.

[https://www.youtube.com/watch?v=ESbtIVR6QSo]

Key benefits

Wireless 1-phase energy measurement via current clamp, without modifying the cabling

Battery-free thanks to self-powering via a supercapacitor

Maximum measuring range up to 100 A with one measurement per second

Accuracy of ±1% and resolution of 1 mA

Energy-efficient LoRaWAN communication

Configuration via LoRa downlink or USB-C with the ToolBox app

Technical specifications

SKU

CT101-868M

Brand

Milesight

Product code

CT101-868M

Suitable for

LoRaWAN

Frequency band

868 MHz

LoRaWAN Class

LoRaWAN network protocol

V1.0.3, V1.1

Current sensor

0 – 100 A

Clamp diameter

16mm

Accuracy

±1 %

Resolution

1 mA

Minimum input current

1 A

Maximum input current

100 A

Operating voltage

Typical 100~480VAC, 50~60 Hz

Sampling frequency

3.3 kHz

Energy meter

RMS Current, Total current (Ah)

Configuration

Downlink, NFC (android app) of USB-C, ct101

Antenna connection

SMA-F

Operating Temperature

-20 to +70 °C

Power supply

Battery-free

Mounting

Current clamp

IP Rating

IP30

Housing type

Plastic

Weight

85.65 g

Dimensions

86.5 × 31 × 37.4 mm

Datasheet

ct10x-datasheet-en.pdf, CT101-868M.pdf

User Guide

ct10x-user-guide-en.pdf, UG_CT101-868M.pdf

Software

download-center

Sensing & Monitoring

Energy measurement

Manufacturers

Milesight

Application & use

When to use

•When you want to monitor the energy consumption of a 1-phase installation

•When measuring without interrupting the cabling is important

•When you want to set threshold values and alerts

Ideal for

• Residential applications

• Small commercial installations

• Energy monitoring and submetering

• Facility management

Not suitable for

• 3-phase applications (in that case choose the CT305)

• Outdoor setups that require higher IP protection than IP30

Frequently asked questions about the Milesight CT101

Does the CT101 need batteries?

What is the maximum measuring range?

What clamp diameter does the CT101 have?

How do I configure the meter?
